Lifting Columns
Full Automatic Lifting Column
Electro-Hydraulic Drive · Remote/APP/PC Control
The full automatic lifting column features 304 stainless steel construction with electro-hydraulic integrated drive, supporting remote, manual, APP and PC control. Equipped with 3M diamond-grade reflective film and LED warning lights, ideal for vehicle access control in high-security locations.
Features
- ◆ 304 Stainless Steel: Corrosion, abrasion, high/low temp resistant; durable in extreme environments
- ◆ Stable & reliable operation in harsh conditions (high/low temp, humidity)
- ◆ Rapid lifting speed (1.5-3.5s) with remote/mobile/PC control
- ◆ Emergency lowering via backup power or manual operation
- ◆ 3M Diamond Grade reflective film + LED warning lights for night visibility
- ◆ Adjustable lifting height for versatile applications
- ◆ Customizable colors (beyond standard stainless finish)
- ◆ 5,000 continuous cycles at room temperature with no failure
Specifications
Power Parameters
| Drive Method | Electro-Hydraulic Integrated |
| Rated Voltage | 36/42/220V (Customizable) |
| Rated Current | 1.7-15A |
| Operating Power | 300W-700W |
| IP Rating | IP68 |
| Lifting Speed | 1.5s-3.5s (Adjustable) |
| Lifting Control | Remote/Manual/APP/PC |
Mechanical Parameters
| Column Material | 304 Stainless Steel |
| Outer Barrel Material | Q235 Carbon Steel |
| Column Diameter | 168/219mm (Customizable) |
| Column Height | 600/1000mm (Customizable) |
| Wall Thickness | 6/8/10/12mm (Customizable) |
| Warning Light | LED Strip (Customizable) |
| Reflective Strip | 3M Diamond Grade Reflective Film |

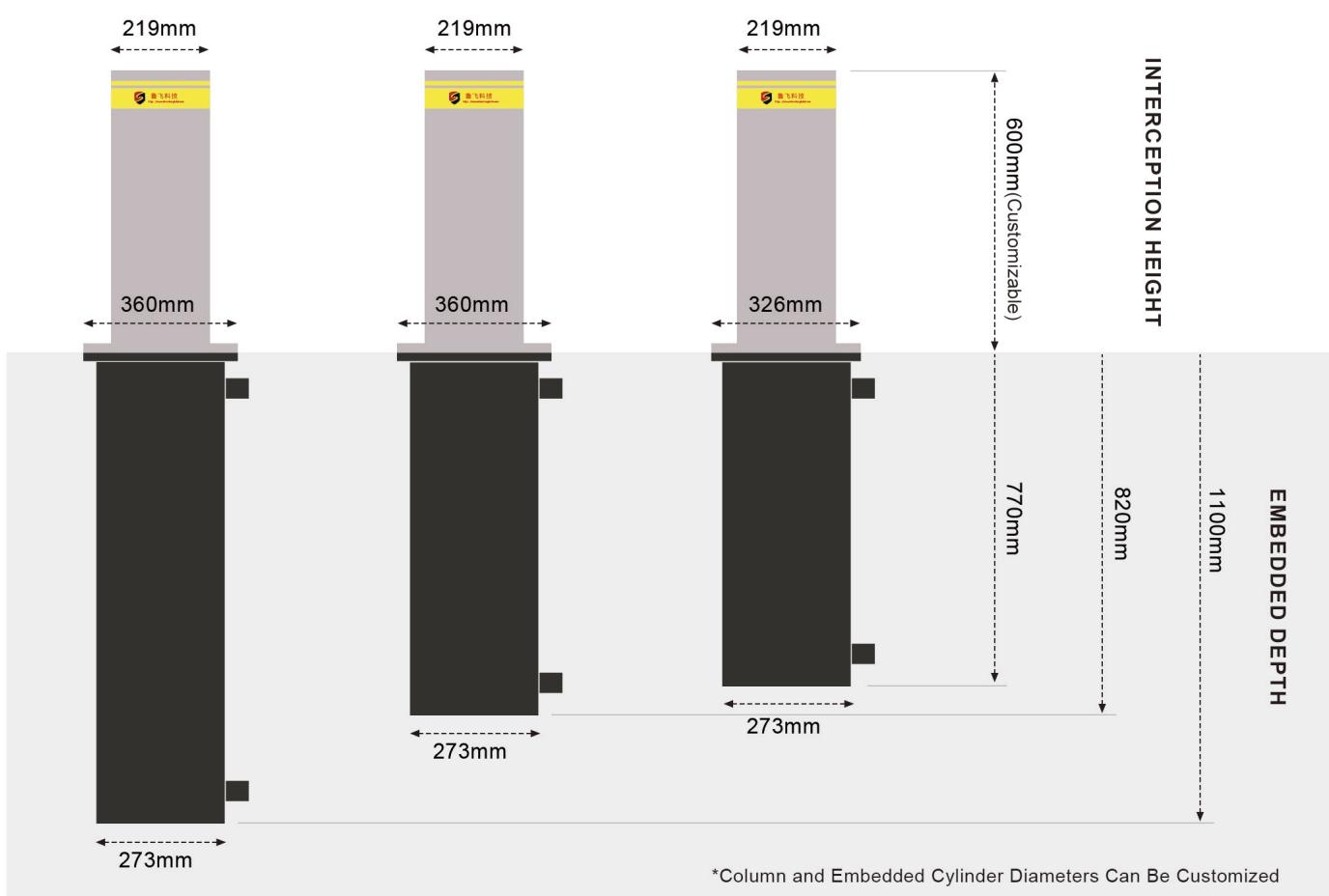

Dimensions Comparison
